Ultrasonic Scanning Systems

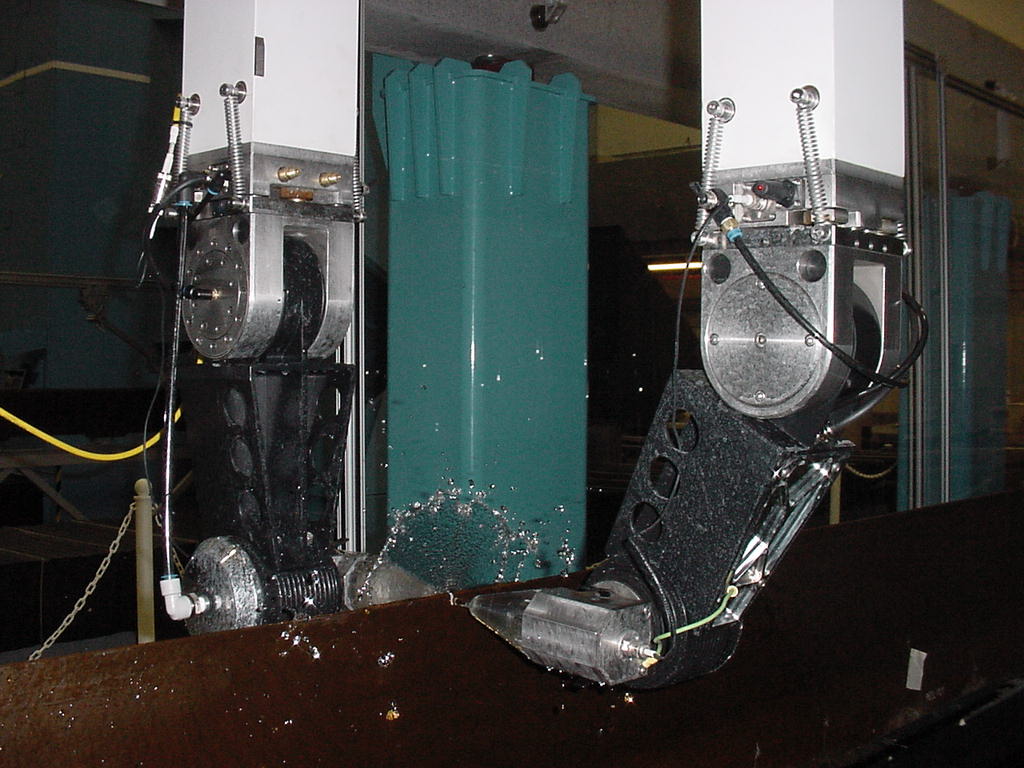

Resource Engineering was contracted to design and build this 7-Axis Gantry Style, Ultrasonic Scanning System for Lockheed Martin's Skunk Works Facility, for production of the F22 "Raptor" Stealth Fighter. The primary requirements included inspection of complex contoured components of varying thickness, material and construction, in both pulse-echo and through transmission modes where appropriate. A further enhancement included the ability to scan variable thickness components in through transmission mode with the surfaces of both sides being tracked simultaneously.
The 7 axis scanning system will be operated by a PC based, commercially available "open architecture" motion control package running under Windows XP Pro operating system. Scanner operation is handled by a sophisticated software package developed by Resource Engineering specifically for multi-axis scanning of complex shaped components and is far in advance of any other product available.
The ability of the system to maintain the transducer normal to surface over the entire scan of a complex component is critical. When scanning using pulse echo mode, the sensitivity of the ultrasonic sound path to even small angular or positioning errors is dramatic. By utilizing superior mechanical designs coupled with high resolution linear and rotary encoders yielding an order of magnitude better accuracy than conventional scanners, you are assured that system sensitivity will be optimum.
MOTION CONTROL FEATURES
  Ability to operate in either machine axes or component axes.
  System Manager / Programmer / Operator access levels with only the appropriate menus and options available in each case.
  Full system status information is always readily available.
  On-line and context sensitive help facility.
  Comprehensive manual and automatic learn procedures.
  Ability to mathematically add further internal surface lines providing different scan start positions, or for leading on to a more detailed automatic surface learn.
  Full 3D image rotation enabling the part surface to be viewed from any direction.
  Mathematical surface extension to allow the over scanning of edge regions.
  Extraction of sub-surface regions to generate further scan plans.
  Full control of all possible scan parameters and machine variables.
  Fast network communications with the data acquisition system for scan control synchronization during scan start and scan error recovery.
  Provision of data acquisition trigger pulses synchronized with the complex contoured surface being tracked during scanning motion even during acceleration and deceleration phases to ensure the correct spacing of ultrasonic acquisition points throughout the whole part surface.
  Network communications with the data acquisition system at the start and end of each scan line to verify the number of trigger pulses and the integrity of the ultrasonic data being collected.
  Ability to stop a scan then return the next day and continue from where you left off with both systems being automatically setup as before through the motion control scan plan and the acquisition workspace.
  Provision of 3D surface data to the data acquisition system to enable 3D mapping of ultrasonic data to the actual part shape to remove any potential for image distortion.
  Area re-scan capability initiated by selecting a region from an acquisition image leading to only that region being re-scanned with the ultrasonic data being over-written facilitating the removal of air bubble or other spurious effects.
  Return to defect capability enabling the machine to be positioned back directly over a defect for further analysis.
  After return to defect an option to switch joystick control into a different mode so that the Z-axis joystick will move the machine towards or away from the part along the surface normal. At the same time the X/Y axes joystick will move the machine in a plane parallel to the surface at the return to defect location.
  Whole range of calibration options to enable determination of machine accuracies, machine Squareness, and manipulator qualification.
  Comprehensive transducer qualification options allowing determination of all transducer variables including length and squint angle.
  Cycle axes options to facilitate assessment of machine performance.
  Hand-box Keypad and LCD-Display communication to enable remote control capability under all appropriate circumstances through display menus and keypad function buttons.
  Hand-box high/slow speed button for fine adjustments when necessary.
  X/Y joystick orientation control so that no matter which way the operator is facing the X/Y axes will always move intuitively according to the joystick direction.

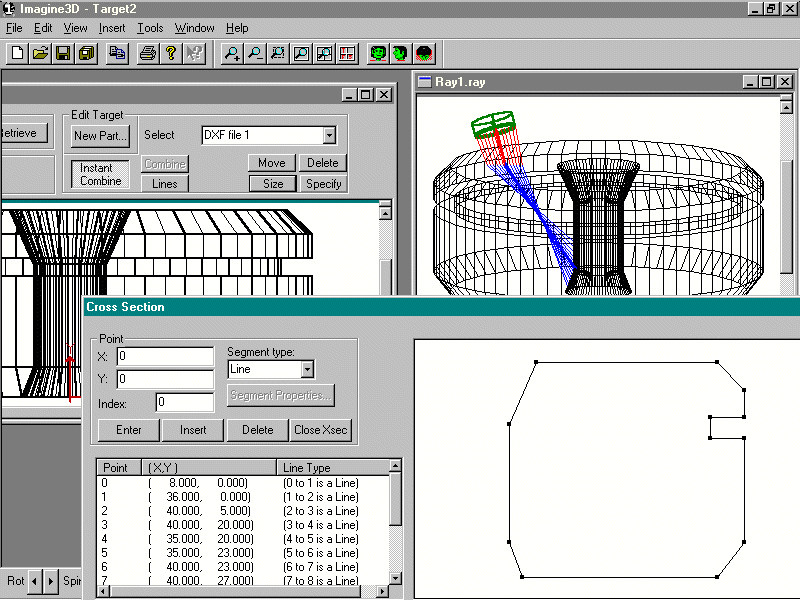

Winspect from UTEX SCIENTIFIC INSTRUMENTS - Bringing the convenience of Windows to ultrasonic testing...

Simple on-screen control

Winspect introduces the proven framework of Microsoft Windows to nondestructive testing, enabling you to perform ultrasonic tests and manage data with unparalleled ease. Winspect offers many time-saving features including toolbar commands, pull-down menus, user-defined colors, multiple displays and context-sensitive Help. With simple on-screen commands, set gates, select scan parameters, define output format and save the setup and results to disk.
Multi-tasking capabilities
Winspect takes you a generation beyond dedicated, single purpose data acquisition computer systems. Winspect will control your scanning rig, collect the data and simultaneously control auxiliary instrumentation. Data and images can be transferred directly to other software packages for analysis and report preparation. This exceptional flexibility provides significant time and cost savings.
Designed for value
Integrate Winspect with your existing hardware. Software support is available for a broad range of acquisition and control hardware and can be provided for new components. Testing capabilities are dramatically upgraded and unnecessary capital expenditures avoided by adding this sophisticated software to your existing system. Winspect delivers outstanding value at a competitive price.
Winspect is an advanced data acquisition software package built on the unique convenience and flexibility of the Windows platform.
In ultrasonic applications, Winspect provides data recording, motion control, pulser receiver control, data display and signal processing enhancements. Winspect records time of flight, amplitude and waveform data from within up to four gates per channel. Data can be displayed in conventional A, B, and C-scan formats and in three dimensional views. Signal processing routines, such as data averaging and digital filtering, which improve signal quality, are included in Winspect. Fast Fourier transform processing is also provided for transducer characterization.
Save time with Winspect. With a simple click of the mouse, the motion control system will re-position to any point of interest on a C-scan. Examine details down to the pixel level by using the continuous zoom feature. Test results and instrument settings can be saved to disk for future reference, allowing side by side comparison of current and archived data in multiple windows.
SOFTWARE FEATURES
  A, B and C-scan formats
  Three dimensional data set presentation
  Multiple ultrasonic instrument channels (virtual instruments)
  Four gates per virtual instrument
  Time of flight and amplitude data obtained simultaneously
  Multiple displays
  Transducer characterization and spectral analysis
  Digital filtering and zoom capabilities
  Track to any location on the current scan
  Display option for additional set of view panes for vertical and horizontal A-traces
  Gray scale, spectral and user defined color palettes
  Print color plots with scan details and operator comment
  Print the entire screen or specific plots
  Save all system variables and hardware configurations in specific files
  Automatic setup for frequently used configurations
